PNP vs NPN: Sourcing vs Sinking Sensor Wiring

Direct Answer for Buyers

PNP sensors source current to the PLC input, while NPN sensors sink current from the PLC input. A PNP sensor is therefore sourcing, not sinking; an NPN sensor is sinking, not sourcing. A replacement must match the PLC input common, supply voltage and NO/NC logic.

Searchers may ask either difference between NPN and PNP sensors or difference between PNP and NPN sensors.
Wrong output type can make the sensor look dead even when the model size is correct.
Send the old label and PLC input wiring photo before ordering a replacement.

Search questions covered

difference between npn and pnp sensorsdifference between pnp and npn sensorsPNP vs NPN sensorNPN vs PNP sensoris PNP sourcing or sinkingis NPN sinking or sourcingPNP vs NPN sourcing and sinking

Sensor PDF Catalog

30-Second PNP vs NPN Wiring Check

PNP sensor ON state	The black output wire sources positive voltage to the PLC input
Typical PNP PLC common	PLC input common is connected to 0V
NPN sensor ON state	The black output wire sinks the PLC input toward 0V/common
Typical NPN PLC common	PLC input common is connected to +24V
Common three-wire colors	Brown = positive supply, blue = 0V, black = output; always verify the exact datasheet
Replacement rule	Match PNP/NPN, NO/NC, voltage and connector before comparing brand or price

Important: Wire colors are common conventions, not a substitute for the original model datasheet or machine wiring diagram.

Replacement Decision

Read the complete model suffix and identify PNP or NPN.
Check whether the PLC input common is 0V or +24V.
Confirm normally open or normally closed switching logic.
Match supply voltage, sensing distance, housing and connector.

Related Replacement Checks

Real PNP and NPN Sensor Label Examples

These are two real J&V M12 products used to show the output difference. They have different sensing distances and mounting styles, so they are label-reading examples rather than interchangeable models.

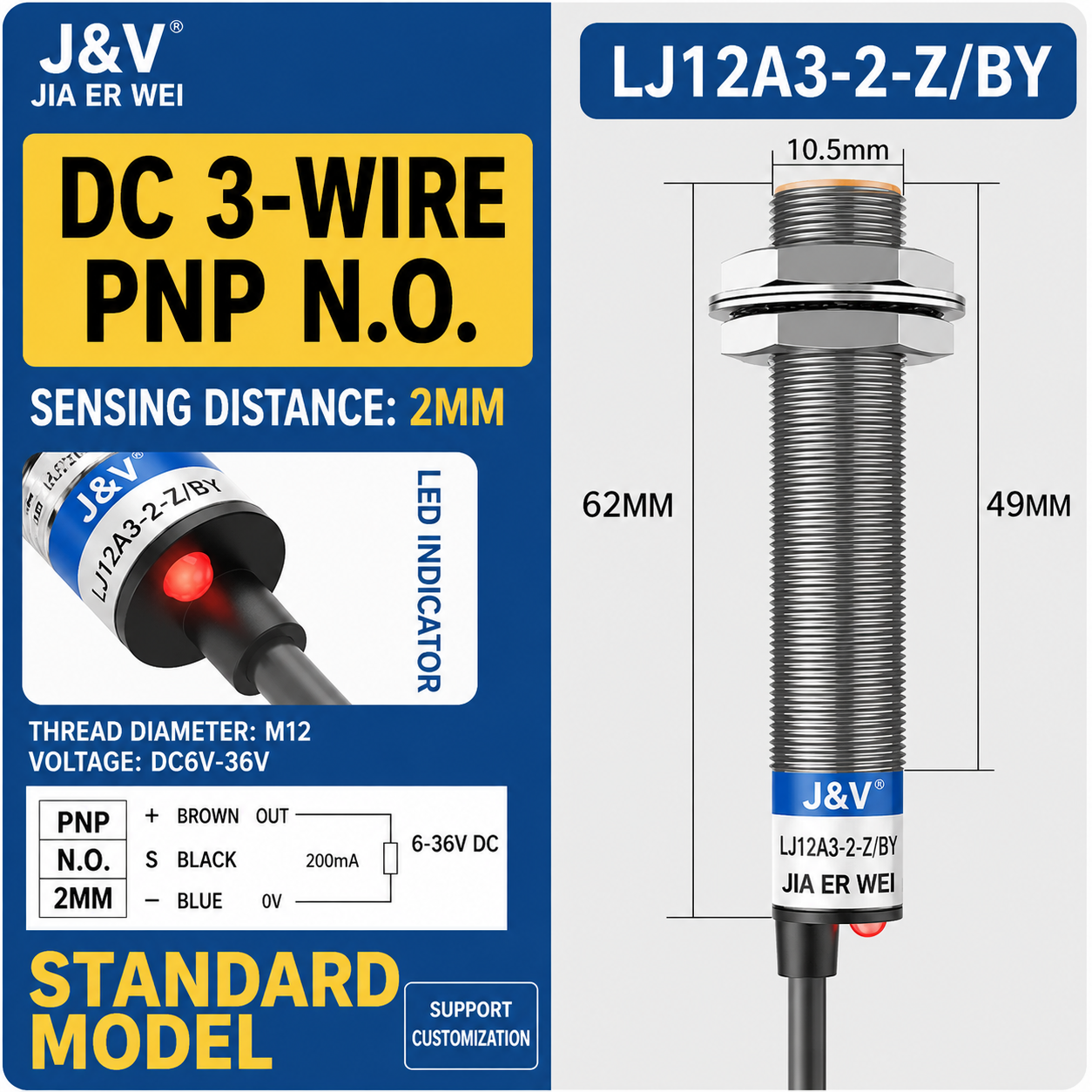

J&V LJ12A3-2-Z/BY PNP normally open inductive sensor label and wiring example

PNP Sourcing Example

LJ12A3-2-Z/BY: M12, DC three-wire, PNP normally open, 2 mm sensing distance and flush mounting.

J&V LJ12A3-4-Z/BX NPN normally open sensor label and wiring example

NPN Sinking Example

LJ12A3-4-Z/BX: M12, DC three-wire, NPN normally open, 4 mm sensing distance and non-flush mounting.

PNP example	LJ12A3-2-Z/BY sources positive voltage to the PLC input when ON
NPN example	LJ12A3-4-Z/BX sinks the PLC input toward 0V/common when ON
Common wires	Brown = positive, blue = 0V, black = output on these two examples
Important difference	The products also differ in range and mounting, so output type is not the only replacement check
Safety rule	The exact datasheet and machine wiring diagram override common wire-color conventions

Question

What is the difference between PNP and NPN?

Detailed Technical Explanation

PNP outputs source positive voltage to the PLC input, while NPN outputs sink the input to negative or common. Buyers may search the difference between NPN and PNP sensors or the difference between PNP and NPN sensors; the correct choice depends on the PLC input type.

For real industrial purchasing, the safest method is to compare the old part, the electrical input, the mechanical fit and the application before treating two models as interchangeable.

Engineering Decision Table

PNP output	Sources positive voltage to the PLC input when the sensor is ON
NPN output	Sinks the PLC input to 0V/common when the sensor is ON
What to check	PLC input type, common wiring and existing sensor label
Buyer mistake	Ordering the same diameter sensor but the wrong output type
J&V check	Ask for wiring photo and PLC input type before replacement

For replacement sourcing, PNP vs NPN is usually more important than the brand printed on the sensor.

Common Buyer Mistakes

Choosing by product photo while ignoring wiring and output
Replacing by brand series without checking suffix details
Ignoring target material, mounting clearance or background
Not testing one sample before repeat purchasing

J&V Practical Check

For PNP vs NPN Sensor, J&V Automation asks for the model label, installed photo, voltage, wiring and target/application details before recommending a part.
