IFM sensor replacement and alternative quote: send the exact IFM model or label photo to compare sensor family, output, range, connector, price and lead time.
An IFM alternative should be selected from the complete model code and application, not from the IFM brand name alone. J&V checks sensing principle, PNP/NPN or special output, voltage, range, housing, connector, installed photo and required documents before recommending a direct or sample-test route.
| IFM IG / II | Inductive sensor: confirm thread size, flush type, range, PNP/NPN and connector |
|---|---|
| IFM O6H | Photoelectric sensor: confirm optical mode, target, range and switching logic |
| IFM PN | Pressure sensor: confirm pressure range, process connection, output and display functions |
| IO-Link or safety model | Send the full suffix and datasheet; do not treat as a basic three-wire replacement |
IFM sensor industrial sensor family
J&V proximity or photoelectric sensor alternative
Original brand names are used only for technical cross-reference and compatibility discussion.
| Parameter | Original Model | J&V Alternative | Check Before Order |
|---|---|---|---|
| Original Model | IFM sensor industrial sensor family | J&V proximity or photoelectric sensor alternative | Send full model code and label photo |
| Output | PNP, NPN, relay, two-wire or analog depending on original part | Matched output selected before quotation | same function, matched housing and wiring |
| Supply Voltage | Typically 10-30 VDC or machine-specific range | Voltage range matched to machine input | Measure panel voltage if the old label is unclear |
| Mechanical Fit | Housing, thread, bracket or slot profile from original series | Closest J&V housing and mounting accessory | Confirm length, face type and cable exit |
| Application | industrial sensor family | general replacement | Confirm target material, distance and environment |

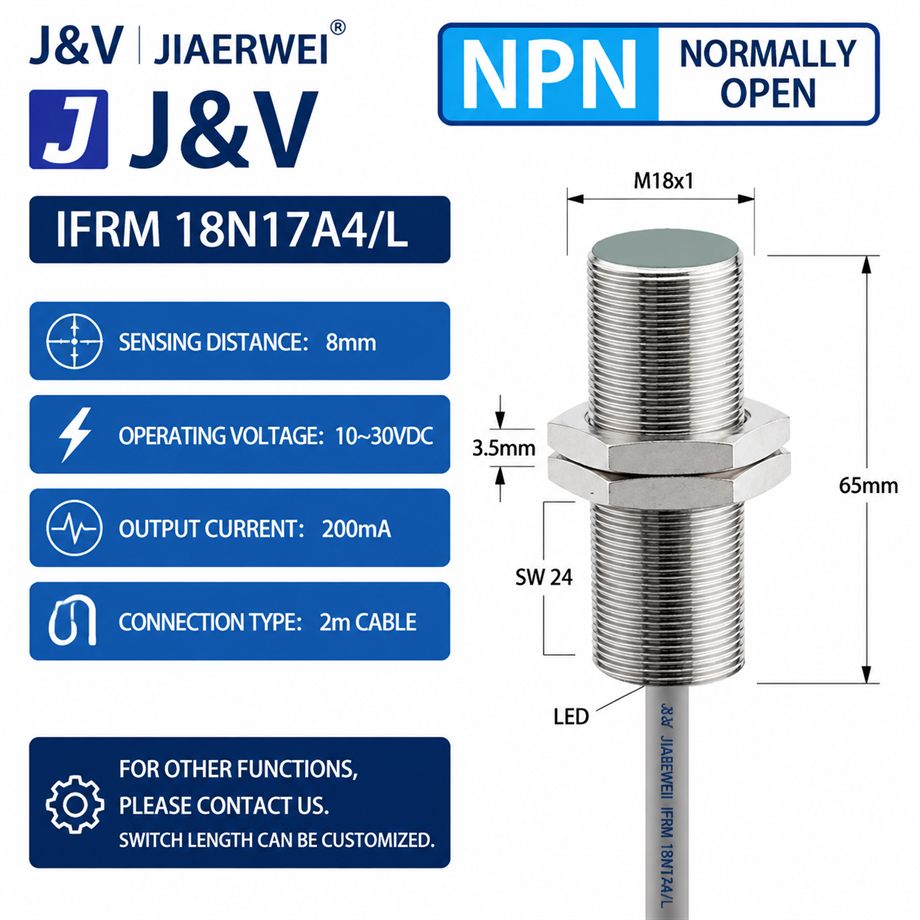

The shown M18 sensor is a real J&V product example. It should be compared with the exact IFM model, not selected from the IFM brand name alone.
| Shown J&V example | M18 x 1 threaded inductive proximity sensor |
|---|---|
| Visible example output | NPN normally open |
| Visible example range | 8 mm |
| Visible example supply | 10-30 VDC, 200 mA output |
| Visible example connection | 2 m cable |
| Cross-reference rule | Confirm IFM family, full suffix, PNP/NPN, flush type, range and connector |
Compatibility note: J&V confirms the original model label and machine conditions before quotation. A product-family photo alone is not compatibility proof.
J&V Automation does not publish placeholder certificates or unmatched test reports. Documents are linked only after the model coverage and publication permission are checked.
| Product family | IFM sensor cross-reference |
|---|---|
| Current page request | IFM sensor replacement |
| Datasheet | Available on request until the exact model PDF is uploaded |
| Wiring / dimensions | Confirmed after model, connector and installation photo are known |
| Certificate documents | See the Certificates page for verification status |
| Buyer information needed | Exact model, label photo, voltage, output type, quantity and destination country |
| Original family | IFM sensor |
|---|---|
| Original function | industrial sensor family |
| J&V alternative route | J&V proximity or photoelectric sensor alternative |
| Minimum evidence needed | Model code, label photo, installed photo, wiring or PLC input information |
| Replacement decision | Direct replacement, near equivalent, or sample-test recommendation |
Most replacement inquiries start with an old label, a blurry machine photo or a partial model number. J&V Automation narrows the risk by checking the electrical interface first, then the mechanical fit and real application conditions.
J&V connects GEO answer pages with the public product catalog, PDF catalogs and live model search.
Open product catalog
Buyers can request label photos, packaging photos, stock checks, export documents and shipping route support.
Open logistics proofUse these pages when the original label, output type or brand family changes the replacement decision.
It is a J&V Automation alternative selected after comparing the original IFM sensor model code, wiring, voltage, range and mounting. It should not be chosen by brand name alone.
Usually yes when the output, sensing distance, housing and environmental rating match. Critical safety or precision applications need a sample test first.
Send the complete model number, label photo, installed photo, quantity, destination country and any PLC input requirements such as PNP or NPN.
| Technical review | J&V Automation technical sales team |
|---|---|
| Last reviewed | 2026-07-21 |
| What we check | Model code, label photo, wiring, sensing distance, mounting, voltage, output and application environment |
| Contact | info@jv-automation.com / WhatsApp +86 15757759002 |
| Page type | replacement answer page |
For final ordering, J&V Automation asks buyers to send the old label, installed photo, quantity and destination country before confirming an alternative.
